Johns Hopkins University · 535.691 Haptic Interface Design · Prof. Jeremy Brown

Knee Instability Correction Device (KICD)

Wearable haptic brace providing directional vibrotactile feedback for ACL rehabilitation — guiding users toward stable knee positions without constraining movement.

Aug–Dec 2024 Duration
Hardware Lead Role
100% Front-bend accuracy

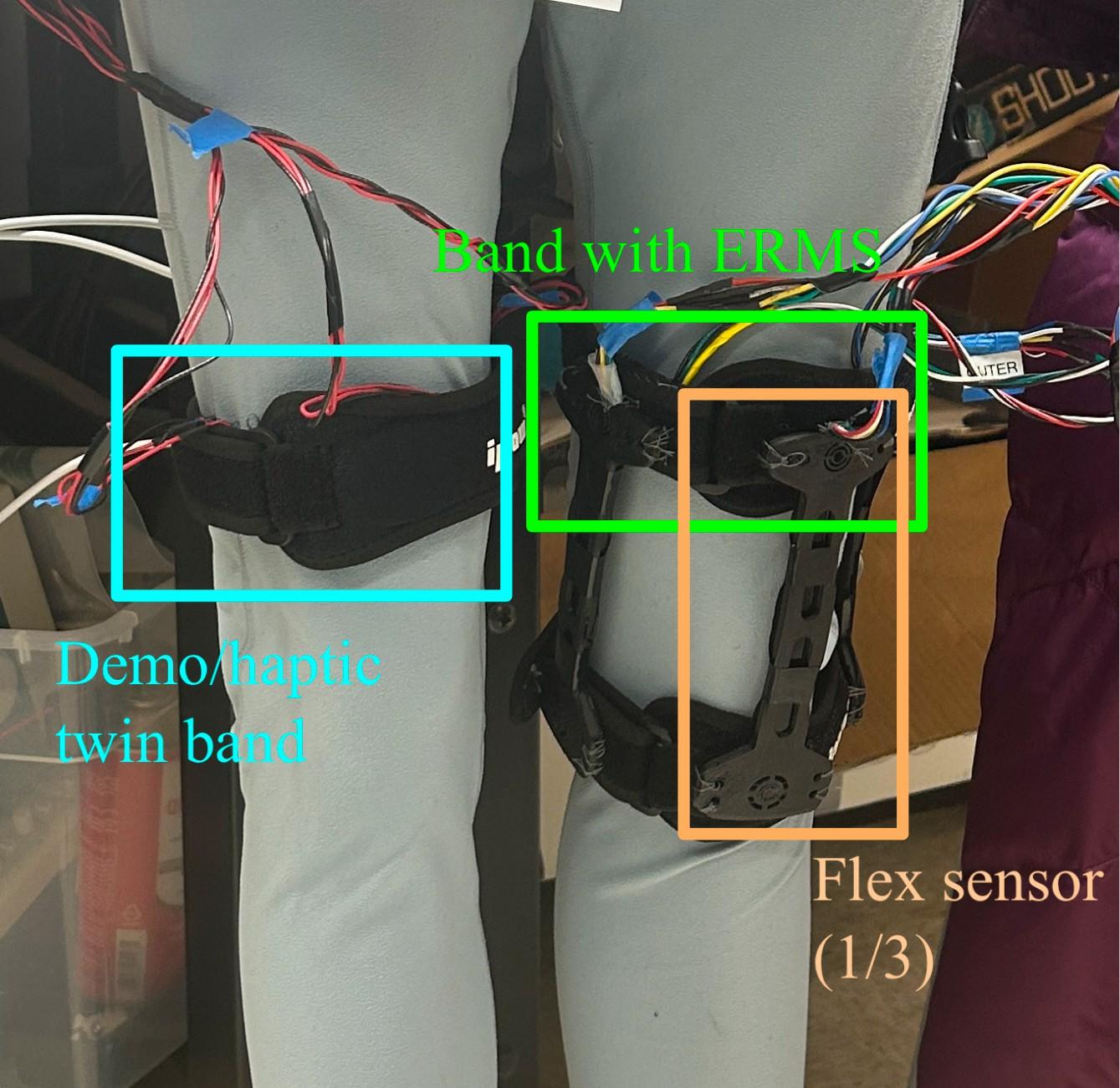

KICD wearable haptic knee brace with flex sensor cage and ERM motor array worn on leg
KICD device worn on leg showing flex sensor cage around knee joint and ERM motor band on upper thigh

Problem Statement

Knee instability from ACL injuries affects 80,000–120,000 people annually in the US. Current rehabilitation methods face a critical tradeoff.

  • Over-bracing risk: Passive braces constrain movement → muscle atrophy
  • Under-bracing risk: Free movement during recovery → re-injury
  • Dynamic valgus: Lateral knee collapse during movement is primary injury mechanism
  • Gap: No device provides active guidance without physical constraint

Methodology

Complete wearable system with sensing, actuation, and closed-loop control. Click a stage to jump there.

Design & Fabrication

The device consists of two adjustable bands: a lower band with flex sensors around the knee and an upper band with the ERM motor array on the thigh.

2Bands
3Flex sensors
6ERM motors
40 mmMotor spacing
  • Flex sensors: 3D-printed TPU enclosures for durability and compliance
  • ERM motors: 1020-type, 79–183 Hz frequency range, 40mm spacing for ≥75% discrimination
  • Bands: Adjustable elastic with Velcro attachment

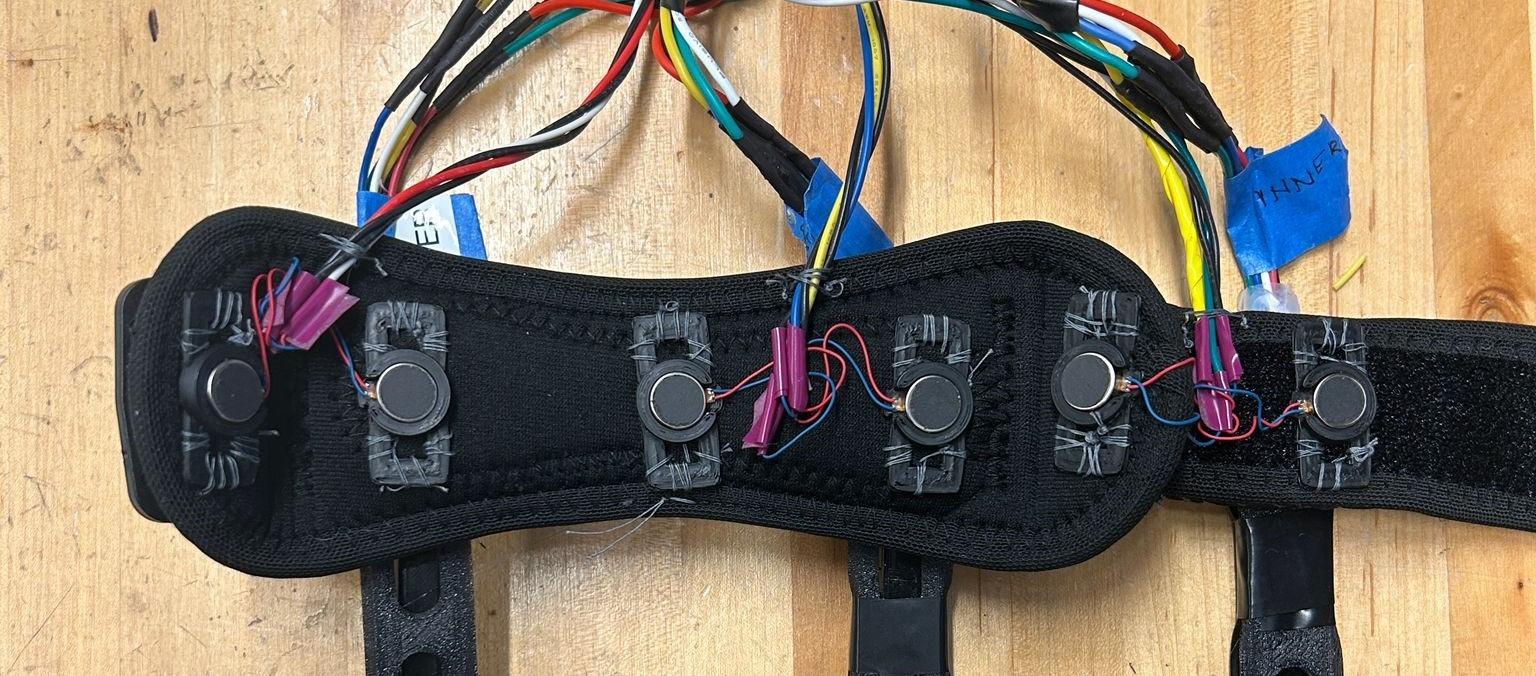

KICD mechanical design showing flex sensor enclosures and ERM motor mounting
Flex sensor enclosures (TPU) and ERM motor array mounting configuration

Electronics Architecture

The system uses an Arduino Mega as the main controller, commanding all ERM motors and receiving data from ELEGOO Nano boards that interface with each flex sensor.

  • Main controller: Arduino Mega for motor control and data aggregation
  • Sensor interface: ELEGOO Nano boards for each flex sensor
  • Motor drivers: 2N2221A NPN transistors, PWM-controlled
  • Wiring: Two perfboards with connectorized bundles for serviceability

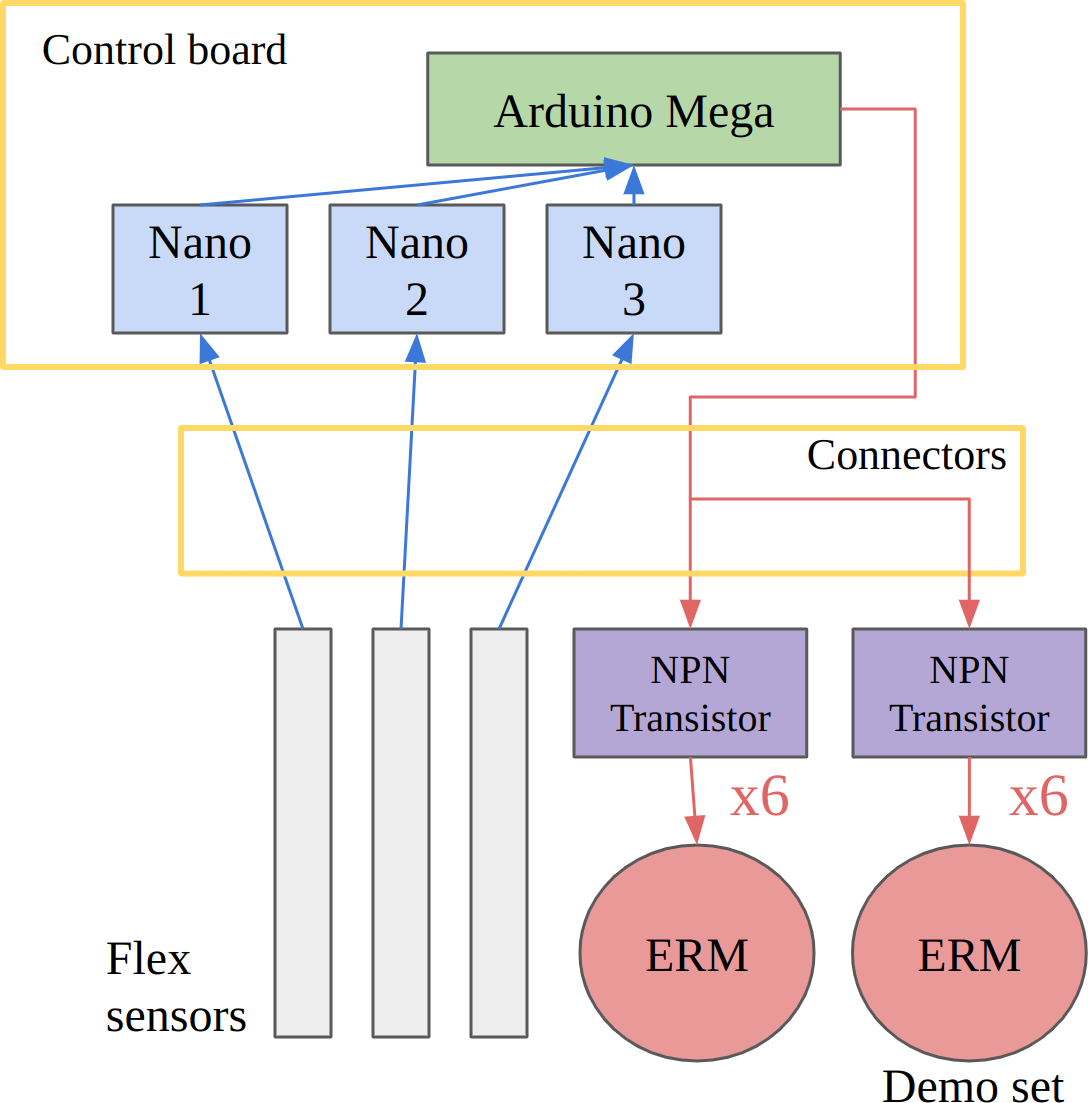

Electronics architecture: Arduino Mega controller with ELEGOO Nano sensor interfaces and transistor motor drivers
Electronics architecture showing Arduino Mega, Nano sensor interfaces, and transistor motor drivers

Control Logic

Threshold-based detection with staggered "follow me" vibration patterns that intuitively guide users toward stability.

Warning threshold
Active threshold
AutoCalibration
  • Detection: Flex sensors detect knee angle across sagittal, abduction, and adduction planes
  • Thresholds: 5° triggers warning, 8° triggers active correction feedback
  • Feedback: Staggered "tracing" vibration pattern guides user directionally
  • Calibration: Auto-calibration routine on startup for per-user adaptation

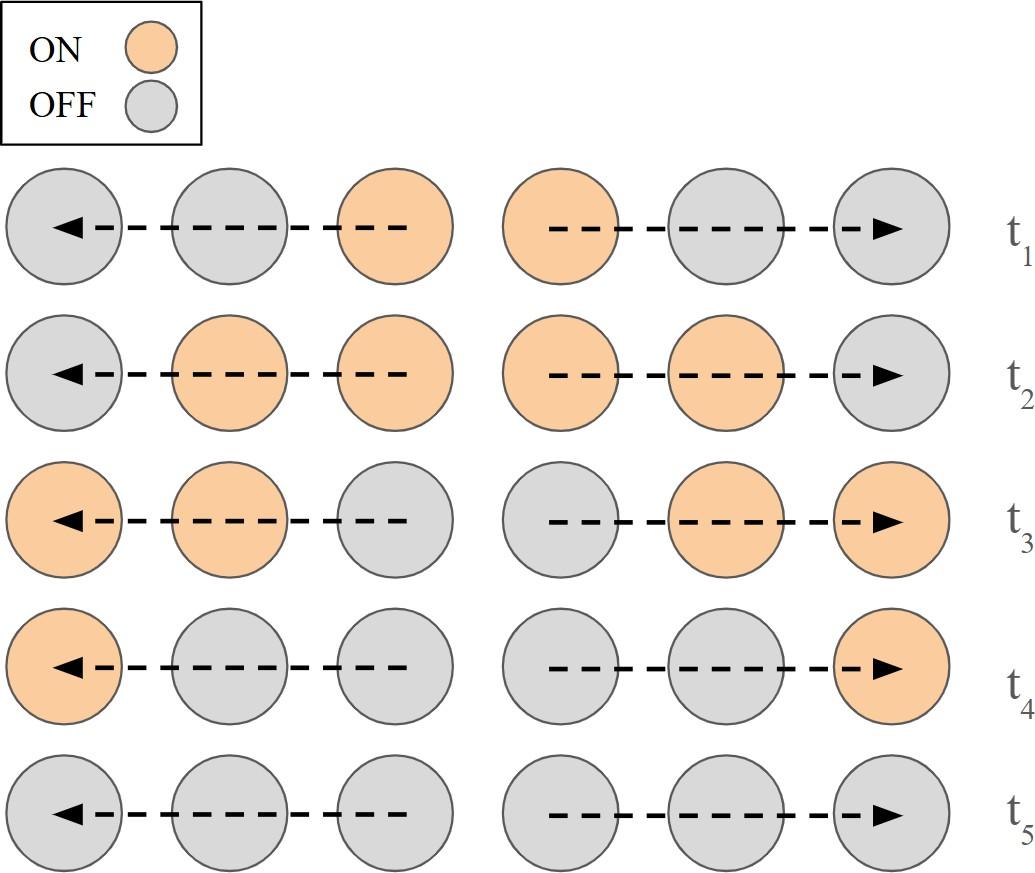

Control logic diagram showing threshold-based detection
Threshold detection logic

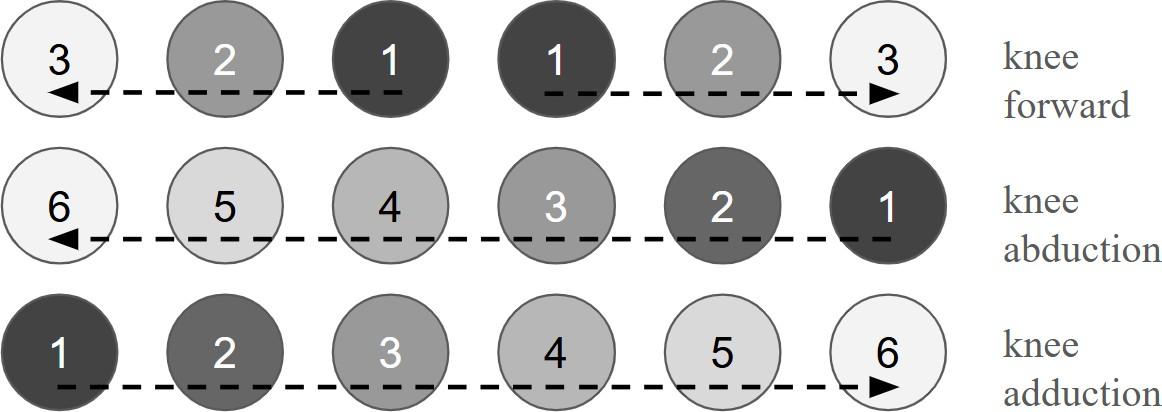

Staggered vibration pattern visualization
Staggered vibration pattern

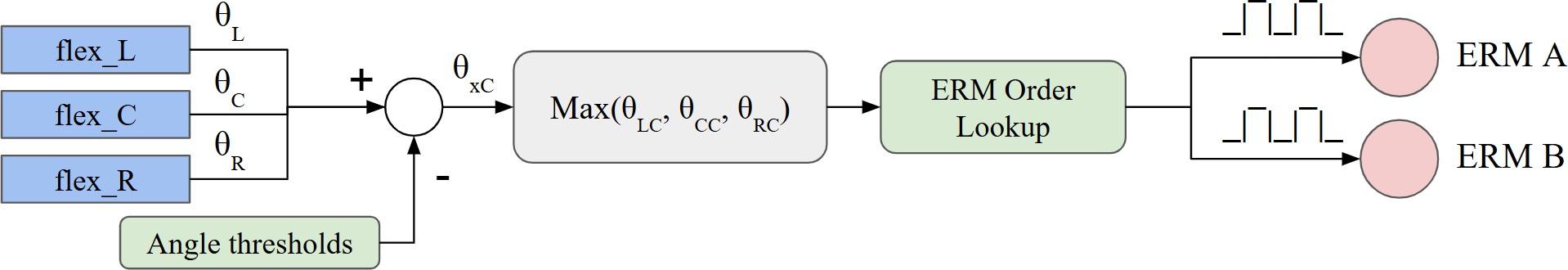

Directional feedback mapping
Directional feedback mapping

Test Setup

Perception Studies: Preliminary vibrotactile perception studies determined optimal design parameters.

4 Subjects (discrimination)
9 Subjects (intensity)
30+ Demo subjects
22±11° Peak abduction angle
  • Two-point discrimination: Testing across 4 knee regions established 40mm motor spacing
  • Intensity perception: Characterized nonlinear PWM-to-sensation relationship
  • Device validation: Tested on 2 individuals with uninjured knees
  • Haptic demos: 30+ subjects using haptic twin configuration for safe manipulation

Results

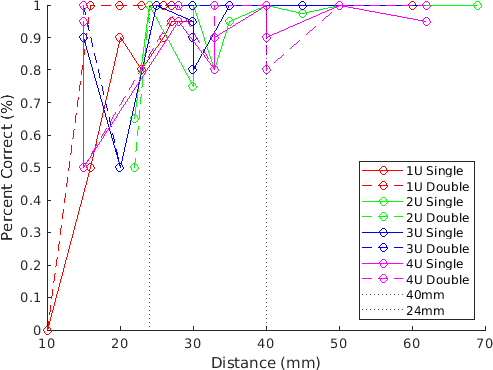

Two-point discrimination testing results showing perception accuracy across knee regions
Two-point discrimination results showing ≥75% accuracy above 24mm across knee regions

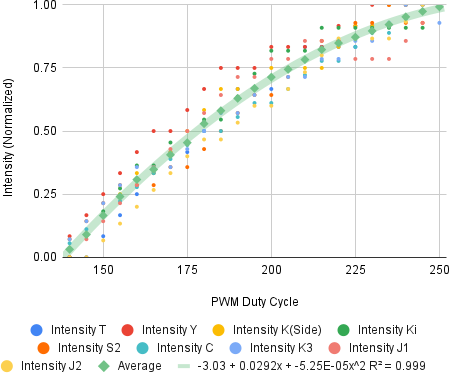

Intensity perception curve showing 2nd order polynomial relationship
Intensity perception curve (R²=0.999) characterizing nonlinear PWM-to-sensation relationship
Data Key findings from testing
  • 100% accuracy: Front knee bend detection and haptic triggering
  • 50% accuracy: Compounded abduction direction (requires per-user calibration)
  • ≥75% discrimination: Achieved above 24mm spacing, near-perfect above 40mm
  • R²=0.999: Intensity perception follows 2nd-order polynomial curve
  • 6% knismesis: Subjects experienced tickling sensation preventing response
  • Clothing: Vibration perceivable through clothing with no significant damping
Table Two-point discrimination by region
Region Location 24mm Accuracy 40mm Accuracy
1U Front ≥75% ~100%
2U Outer ≥75% ~100%
3U Back ≥75% Variable
4U Inner ≥75% ~100%
Future Planned improvements
  • Voice coils: Replace ERMs for finer frequency control
  • 2-axis flex sensors: Better abduction/adduction detection
  • Accordion TPU mounts: Improved mechanical compliance
  • Formal user study: IRB-approved clinical validation

Demo Video

Demonstration of the KICD device mounted on a teddy bear mannequin, showing flex sensor detection of incorrect knee positions and corresponding directional haptic feedback response.

Additional Information

Complete technical report with methodology, results, and analysis from the 535.691 Haptic Interface Design course final project.

Skills Technical skills demonstrated
  • Electronics: Arduino, transistor motor drivers, PWM control
  • Fabrication: 3D printing (TPU), wearable integration
  • Haptics: Vibrotactile perception, two-point discrimination
  • User Studies: Perception testing, data analysis
