Haptic-Guided Magnetic Microbot Navigation
Real-time wall collision detection system with gradient haptic feedback for magnetically actuated surgical microrobots.
Problem Statement
Magnetic microbots can navigate in confined environments, but operators often struggle to detect wall contact early enough to avoid collisions.
- Visual limitation: Microrobot is small and environment is visually dense
- Delayed detection: Operators detect wall contact too late to prevent collision
- Camera dependency: Teleoperator needs additional cues beyond the camera feed
- Solution: Haptic feedback as intuitive indication of wall proximity
Methodology
The system combines electromagnetic actuation, visual localization, and joystick-based haptic feedback. Click a stage to jump there.
Robot position is tracked from an overhead camera feed, then compared against the maze geometry to estimate collision risk. When the direction of intended motion conflicts with detected wall proximity, the joystick vibrates with intensity that increases as the robot gets closer to the wall.

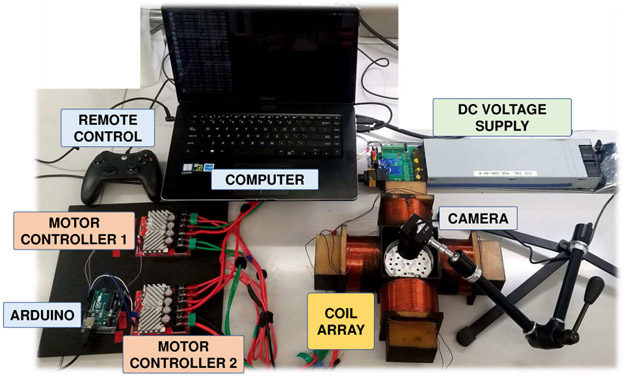

The main control architecture was implemented in MATLAB, with helper scripts handling localization, wall detection, actuation, and vibration control.
Design & Simulation
The core collision logic uses the dot product between the joystick command direction and the robot-to-wall direction.
- Collision detection: Dot product between joystick direction and robot-to-wall vector
- Virtual boundary: Haptic vibration creates "virtual tactile boundary" for operator
- Proportional feedback: Vibration intensity directly proportional to force dot product
- Real-time processing: Continuous position tracking and wall proximity estimation
Fabrication
A custom test maze was fabricated for controlled navigation experiments.
- Maze design: Narrow passages and turning regions for wall detection testing

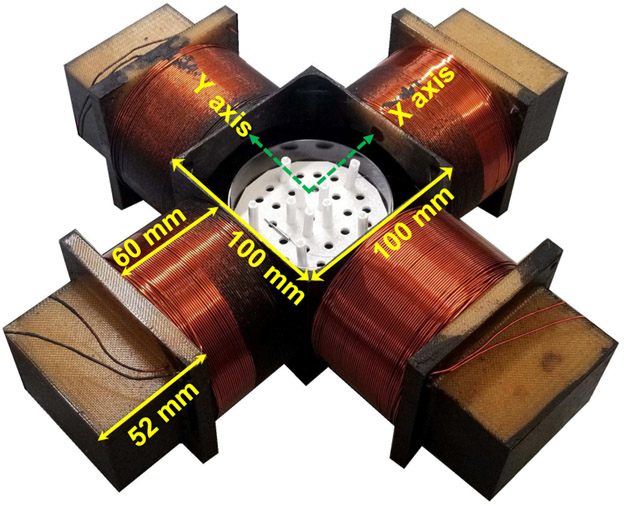

- Actuation hardware: 4-coil electromagnetic array
- Joystick interface: Xbox-style controller with haptic motor
- Localization pipeline: FLIR overhead camera with computer vision
Test Setup
Results
The navigation interface successfully displayed wall proximity in real time and provided haptic cues through the joystick.
Output System performance
- Maze traversal: Robot successfully navigated maze while operator received feedback
- Wall detection: Live overlay showed wall detection status and robot position
- Haptic cues: Joystick vibrated when robot approached walls
- Situational awareness: Operator maintained awareness while relying less on direct visual inspection
Display Live overlay features
- Wall detection status indicator
- Frame rate display
- Robot position coordinates
- Collision risk visualization
Additional Information
Project report, supporting documents, and implementation files from EN.530.666 Magnetically Actuated Robots.
Skills Technical skills demonstrated
- Control: MATLAB real-time control, electromagnetic actuation
- Computer Vision: Camera-based localization, position tracking
- Haptics: Gradient haptic feedback, joystick integration
- Fabrication: Custom maze design and construction
