PES University · Guide: Dr. Chandrashekara C V

Computational Design of Machine Elements

2018 – 2022

Simplified the manual calculations of the design of machine elements using MATLAB. The design procedure and values were cross-verified using a Data Handbook. The implemented machine elements are shafts, springs, belt drive, chain drive, bevel gear, helical gear, spur gear, and worm gear.

8Elements
22+Materials
Menu-DrivenInterface
ExcelDatabase

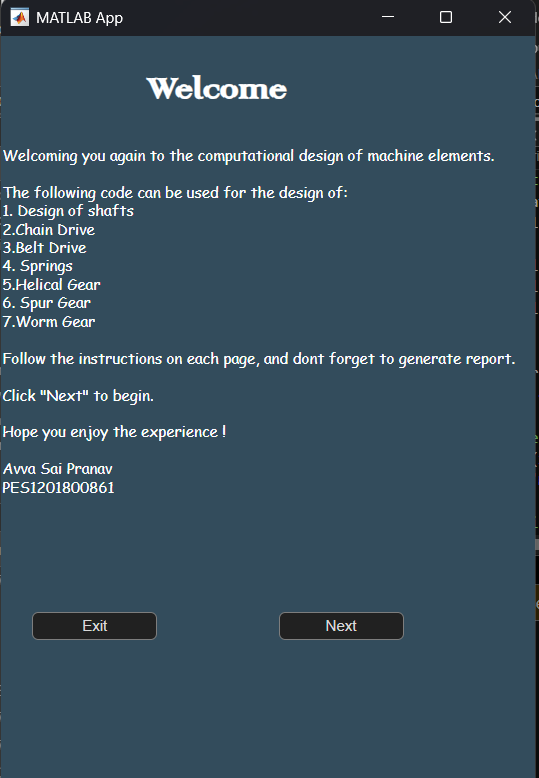

MATLAB GUI welcome screen showing menu options for designing shafts, belt drives, chain drives, springs, bevel gears, helical gears, spur gears, and worm gears
MATLAB menu-driven interface for 8 machine element design calculations
Shafts+ hollow support
4 GearsBevel · Helical · Spur · Worm
Belt/ChainDrives
Springs4 end types

Problem Statement

  • Manual Bottleneck: Traditional machine element design requires repetitive handbook lookups and hand calculations, consuming hours per design iteration and introducing human error.
  • Material Selection: Engineers must manually cross-reference multiple tables for material properties, standard sizes, and safety factors—a tedious and error-prone process.
  • Safety Verification: Each design requires manual stress analysis against permissible values, with separate checks for wear, dynamic loading, and thermal effects depending on element type.

Methodology

This project translates standard design handbook procedures into an interactive MATLAB application, implementing computational workflows for eight fundamental machine elements with automated material selection and safety verification.

Menu-Driven Architecture

The application features a menu-driven interface that guides users through the design process. Users select a machine element type, then provide input parameters through prompted dialogs. The system supports multiple design paths—for example, shaft design can proceed with diameter known or unknown, accommodating different engineering scenarios.

Material Database Integration

A database of 22+ materials is integrated via Excel lookup tables, automatically retrieving mechanical properties (yield strength, ultimate strength, allowable stresses) based on user selection. Standard sizes for pulleys, belt widths, chain pitches, and gear modules are also retrieved from reference tables, ensuring designs conform to manufacturing standards.

Safety Verification Logic: Each design calculation includes automatic safety checks comparing computed stresses against permissible values. The system evaluates wear resistance, dynamic loading effects, and for worm gears, heat generation versus dissipation capacity with artificial cooling recommendations when needed.

Results

Successfully automated design procedures for 8 machine elements with full parameter output and built-in safety verification.

Element Key Outputs Special Features
Shaft Diameter (d), Torque (T), Moment of Inertia (M) P vs N, T vs N, D vs N trend graphs; hollow shaft support
Belt Drive Pulley diameters (D1, D2), Belt length (L), Width (b), Tensions (T1, T2) Standard size selection for pulleys and belt width
Chain Drive Sprocket teeth (z1, z2), Chain pitch, Center distance, Chain length Service factor tables; safety factor verification
Springs Wire diameter (d), Mean coil diameter (D), Active coils (N), Free length, Pitch Four end-type options; Wahl correction factor
Bevel Gear Module (m), Face width (b), Pitch diameters, Tooth counts Lewis form factor; wear and dynamic load checks
Helical Gear Module, Diameters, Helix angle calculations, Forces (Ft, Fa, Fr) Virtual teeth calculation; minimum face width check
Spur Gear Module, Pitch diameters, Tooth counts, Face width Three involute systems (14.5°, 20°, 20° stub)
Worm Gear Center distance, Pitch diameters, Module, Lead angle, Efficiency Heat generation vs. dissipation analysis; artificial cooling check
Key Achievement Automated 8 machine element designs with safety verification

All design calculations cross-verified against Data Handbook values. The system eliminates manual lookup errors and provides instant feedback on design safety margins, enabling rapid iteration through design alternatives.

Future Scope

  • Add graphical output for all machine elements (currently only shaft has trend plots)
  • Implement a full GUI using MATLAB App Designer for improved user experience
  • Add export functionality to generate design reports in PDF format
  • Include additional machine elements (couplings, clutches, brakes, bearings)
  • Add optimization routines to find minimum-weight or minimum-cost designs
Skills Technical skills developed
  • MATLAB Programming: Menu-driven interfaces, Excel integration via xlsread/xlswrite, plotting and visualization
  • Machine Design: Handbook procedures for shafts, gears, springs, belt/chain drives
  • Database Design: Material property lookup tables, standard size references
  • Engineering Analysis: Safety factor calculations, stress analysis, thermal analysis
Team Contributions & credits

Sole developer. Guided by Dr. Chandrashekara C V at PES University.

Additional Information

The complete MATLAB source code and Excel lookup tables are available on GitHub.
